Technical Parameters:
nominal input voltage: 230V AC, 50Hz , 1.4A
nominal charging voltage: 24 V DC
max. charging current: 8 A DC
max. output voltage: 28,8 V /29,6 V
max. consumption from battery: 8mA
ambient tempereature: -10 -50°C
operational tempereture: max.60°C

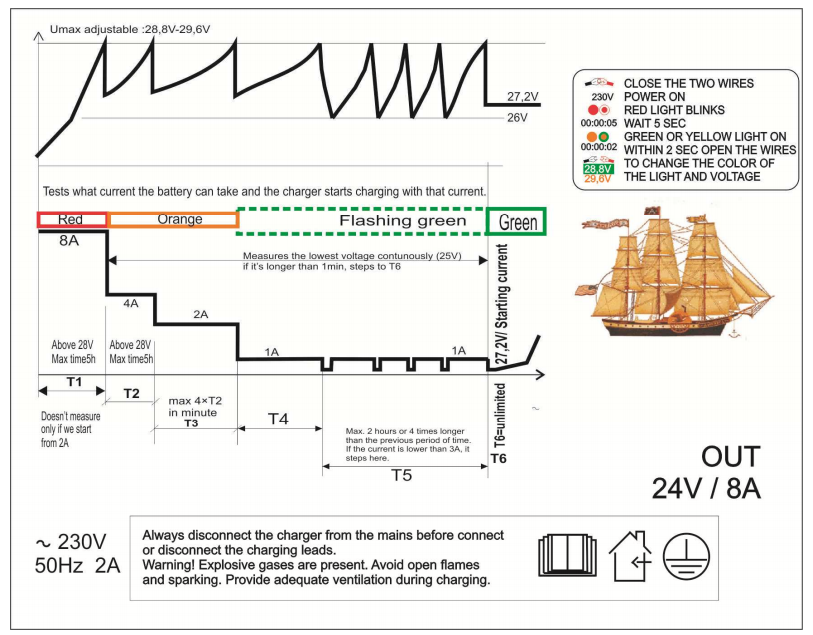

charging characteristics: Step down 8A – 4A – 2A this is a , special , very safe characteristic
size: 115*160*57mm
weight: 1,4 kg
IP class: 44
Protected against reverse polarity and short circuit.
Equipped with an additional protection circuit against output overvoltage.
